Quick Summary
This H610 LGA 1700 Micro ATX gaming motherboard is built for 12th, 13th and 14th Gen Core i3, i5, i7 and i9 processors. It supports double channel DDR4 memory and includes storage and expansion options such as M.2, SATA3.0, PCIe and WiFi.
It also features DisplayPort and HDMI outputs for 1080P video output when used with a CPU that supports integrated graphics.
Who It Is Best For
This board is for buyers building or replacing a PC around an LGA 1700 processor and wanting a Micro ATX motherboard with DDR4 support, onboard storage expansion and network connectivity options.
It is also relevant if you want display outputs on the motherboard itself and plan to use integrated graphics where supported by the CPU.
Key Details
| Detail | Verified information and buyer relevance |
|---|---|
| Socket | LGA 1700, so it is intended for compatible processors in that socket range. |
| Chipset | H610, identifying the motherboard platform. |
| Form factor | Micro ATX, which matters for case fit. |
| Memory | Double channel DDR4 support with 2 x 288 pin DDR4 SDRAM and a maximum capacity of 64GB. |
| Supported memory speeds | D3200, 2933, 2800, 2666, 2400 and 2133MHz are listed. |

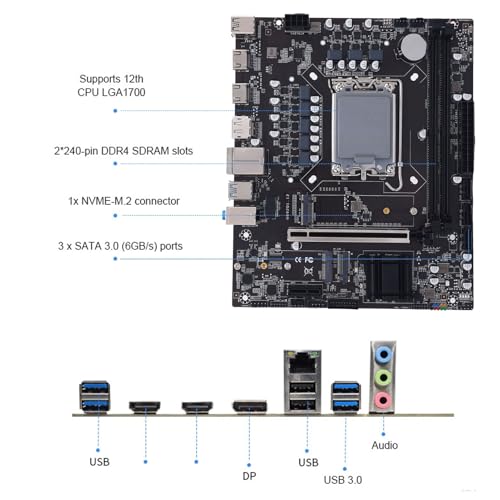

| Storage and expansion | Three SATA 3.0 ports, one PCI Express x16 slot, one PCI Express x1 slot, one NVME M.2 interface, one SATA M.2 interface and one WiFi interface. |
| Video outputs | DisplayPort and HDMI outputs are included for 1080P video output with supported integrated graphics. |
| Networking | WiFi and Gigabit LAN are stated in the product title. |
Why Buyers Choose It
- Support for 12th, 13th and 14th Gen Core i3, i5, i7 and i9 processors gives a clear socket and CPU range to check before ordering.
- Double channel DDR4 support with a 64GB maximum capacity gives a defined memory target for system planning.
- Three SATA 3.0 ports plus NVME M.2 and SATA M.2 interfaces provide several storage connection options.
- DisplayPort and HDMI outputs allow motherboard video output when the CPU provides integrated graphics.
What To Know Before You Buy
Check that your processor is LGA 1700 and falls within the supported 12th, 13th or 14th Gen Core i3, i5, i7 or i9 range. Confirm that your case accepts Micro ATX boards before ordering.
If you plan to use the DisplayPort or HDMI outputs, make sure your CPU supports integrated graphics. Also review the memory list and maximum 64GB capacity against your build plan.
Confirm whether you need the stated WiFi and Gigabit LAN options, and check that the storage and expansion layout matches your intended setup.
Common Buyer Questions
Which processors does this motherboard support?
It is listed for 12th, 13th and 14th Gen Core i3, i5, i7 and i9 processors on the LGA 1700 socket.
How much memory can it take?
It supports double channel DDR4 memory with a maximum capacity of 64GB.
Can I use the motherboard video outputs without a graphics card?
Yes, the DisplayPort and HDMI outputs support 1080P video output when used with a CPU that supports integrated graphics.
What storage connections are included?
Three SATA 3.0 ports are listed, along with NVME M.2 and SATA M.2 interfaces.
Final Buying View
This motherboard suits an LGA 1700 build that needs DDR4 support, multiple storage connection options and onboard display outputs. Check CPU socket, case size and graphics support carefully before choosing.
