Thermal Imager CA 09D 3D Infrared Thermal Imager for Electrical and PCB Inspection

The CA 09D Thermal Imager is a 3D infrared tool for electrical and PCB inspection. With a 256×192 sensor, 30mm macro lens and analysis features, it helps you check heat patterns, faults and abnormal heating on circuit boards and electronic components.

Search Amazon for alternatives. The results may include other products.

Search Amazon for alternatives

SKU: B0F9NQDSPK Category:

As an Amazon Associate we earn from qualifying purchases.

You might also need

MOSISO Camera Sling Bag for DSLR, SLR and Mirrorless Cameras, Black£36.99 (as of 15/11/2026 12:04 GMT - DetailsProduct prices and availability are accurate as of the date/time indicated and are subject to change. Any price and availability information displayed on Amazon at the time of purchase will apply to the purchase of this product.)View on Amazon
POLAM FOTO Camera Tripod with Ball Head and Carrying Bag£41.99 (as of 07/12/2025 12:05 GMT - DetailsProduct prices and availability are accurate as of the date/time indicated and are subject to change. Any price and availability information displayed on Amazon at the time of purchase will apply to the purchase of this product.)View on Amazon
Amazon Basics microSDXC Memory Card with Full Size Adapter, A2, U3, 128GB, Black£26.99 (as of 15/11/2026 12:03 GMT - DetailsProduct prices and availability are accurate as of the date/time indicated and are subject to change. Any price and availability information displayed on Amazon at the time of purchase will apply to the purchase of this product.)View on Amazon

Quick Summary

The CA 09D Thermal Imager is a 3D infrared thermal imager designed for electrical and PCB inspection. It is described with a 256×192 resolution sensor and a 30mm macro lens, helping you inspect heat patterns, component faults, and abnormal heating on circuit boards and electronic components.

Who It Is Best For

This is a practical choice for people carrying out electrical checks, PCB troubleshooting, and electronics repair work. It suits buyers who want detailed thermal viewing for closer inspection of faults, leaks, short circuits, or uneven heating in components.

What To Know Before You Buy

The unit is listed for USB connection to Windows 10 plus systems and includes one touch startup. It also includes split screen mode, rectangle analysis, adjustable height stand, foldable design, and software tools for analysis.

Pros: It combines detailed thermal imaging with practical inspection tools for electronic fault finding.

Cons: Buyers should check that the device and software are suitable for their setup before ordering.

Common Buyer Questions

What is this thermal imager used for?
It is used for electrical and PCB inspection, including checking heat patterns and abnormal heating on electronic components.

Can it help with fault finding on circuit boards?

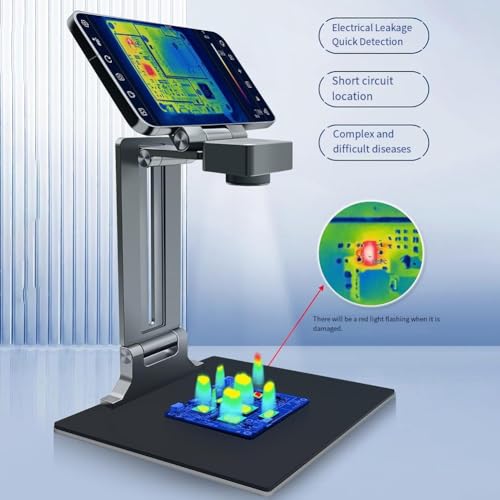

Yes, it is described for detecting electrical faults, leaks, short circuits, and heating issues on PCBs and circuit boards.

Does it connect to a computer?
It is listed as connecting via USB to Windows 10 plus systems.

Are there viewing modes included?
Yes, split screen mode and rectangle analysis are both listed.

Is it suitable for close inspection?

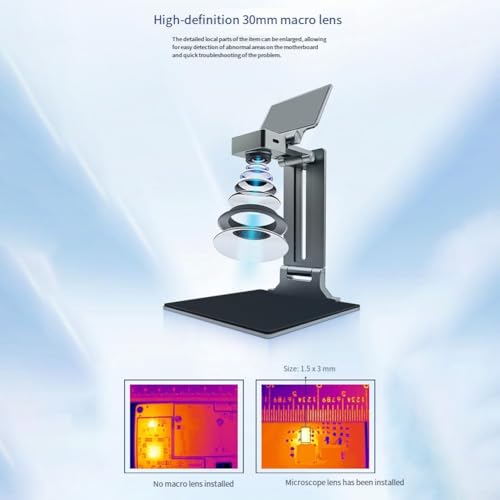

It is described with a 30mm macro lens and a foldable design for zero distance close ups.

What should I check before ordering?
Check that the device and software suit your setup and inspection needs before buying.

Key Details

DetailWhat it means in use
Product type3D infrared thermal imager for inspection work
ModelCA 09D
Sensor resolution256×192 for detailed thermal imaging
Lens30mm macro lens for closer viewing
ConnectionUSB connection to Windows 10 plus systems

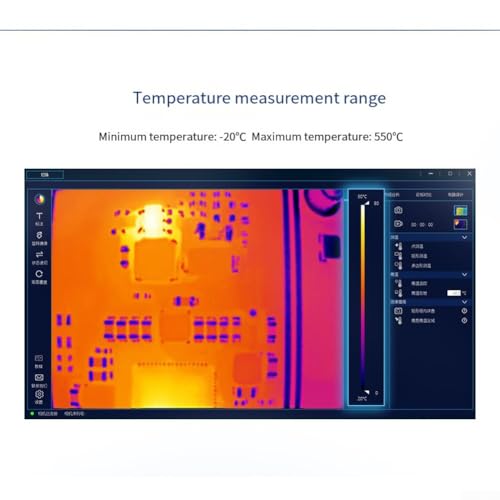

Temperature range-20°C to 550°C
Alert systemAudible warnings and flashing red frame alerts at set thresholds
Analysis modesSplit screen mode and rectangle analysis
DesignAdjustable height stand and foldable compact form
Listed size150mm x 150mm x 230mm

Final Buying View

The CA 09D Thermal Imager brings together thermal imaging, analysis tools, and a compact folding design for electrical and PCB inspection. If you want a focused tool for checking heat patterns, component faults, and abnormal heating, it offers a clear set of practical features. Check compatibility with your setup before ordering, then choose it if it matches the way you inspect and diagnose electronics.

Brand

Whychstore

Manufacturer

Whychstore

Binding

Kitchen & Home

Model

32990BRYU89U3WGJCF25O

Color

as picture show

Width

5.905511805 inches

Height

5.905511805 inches

Length

9.055118101 inches

Item Weight

2.645547144 Pounds
