Quick Summary

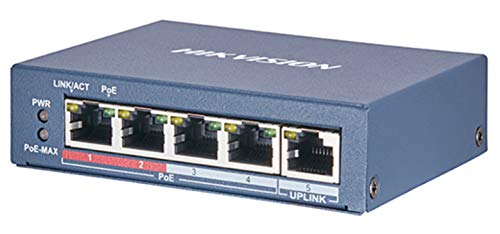

The Hikvision DS-3E0105P-E2 is a 4-port Fast Ethernet unmanaged PoE switch with 4 x 100M PoE ports and 1 x 100M Ethernet port. It also supports High Priority ports, which is a useful detail if you want to separate more important connections from standard ones.
The switch is stated to provide up to 30 Watts per PoE port, with a total PoE power budget of 60W. It also includes 6kV surge protection for PoE ports and supports 8-core power supply.
Who It Is Best For
This switch suits buyers who need a compact unmanaged PoE network switch with the stated port layout and power budget. It is also relevant if the listed PoE standards, surge protection and high priority port support are important for your setup.
Key Details
| Detail | Verified information and buyer relevance |
|---|---|
| Model | DS-3E0105P-E2, which helps confirm you are selecting the exact unit. |
| Port layout | 4 x 100M PoE ports and 1 x 100M Ethernet port for the stated network configuration. |
| PoE support | Supports IEEE802.3at/af, IEEE802.3, IEEE802.3u and IEEE802.3x. |
| PoE output | Up to 30 Watts per PoE port, with a total PoE power budget of 60W. |
| Transmission distance | Up to 820 feet PoE transmission distance, which is a key check for cable runs. |
| Protection | 6kV surge protection for PoE ports. |
| Network capacity | 1 Gbps switching capacity, 1K MAC Address entries and 448 Kbits RAM data buffer. |
| Compliance | UL Listed. |
Why Buyers Choose It
- 4 x 100M PoE ports and 1 x 100M Ethernet port give a simple, clearly defined port layout.
- Up to 30 Watts per PoE port and a 60W total budget help define the available PoE power allocation.
- High Priority ports may be useful when some connections need to be treated differently within the switch setup.
- 6kV surge protection for PoE ports adds a clearly stated protection feature for those ports.
What To Know Before You Buy
Check that your network and connected equipment match the stated Fast Ethernet and PoE requirements before ordering. If your installation depends on a specific cable run, review the stated up to 820 feet PoE transmission distance alongside your own layout. The total PoE power budget is 60W, so the combined load across connected devices matters.
Common Buyer Questions
How many PoE ports does it have?
It has 4 x 100M PoE ports.
What is the total PoE power budget?
The total PoE power budget is 60W.
Does it support PoE standards?
Yes, it supports IEEE802.3at/af, IEEE802.3, IEEE802.3u and IEEE802.3x.
Is there protection on the PoE ports?
Yes, 6kV surge protection is stated for the PoE ports.
Final Buying View
If you need an unmanaged Fast Ethernet PoE switch with the stated port count, power budget and protection features, this model gives a clear specification to compare against your setup. Confirm the port type, PoE load and cable distance before you choose it.
